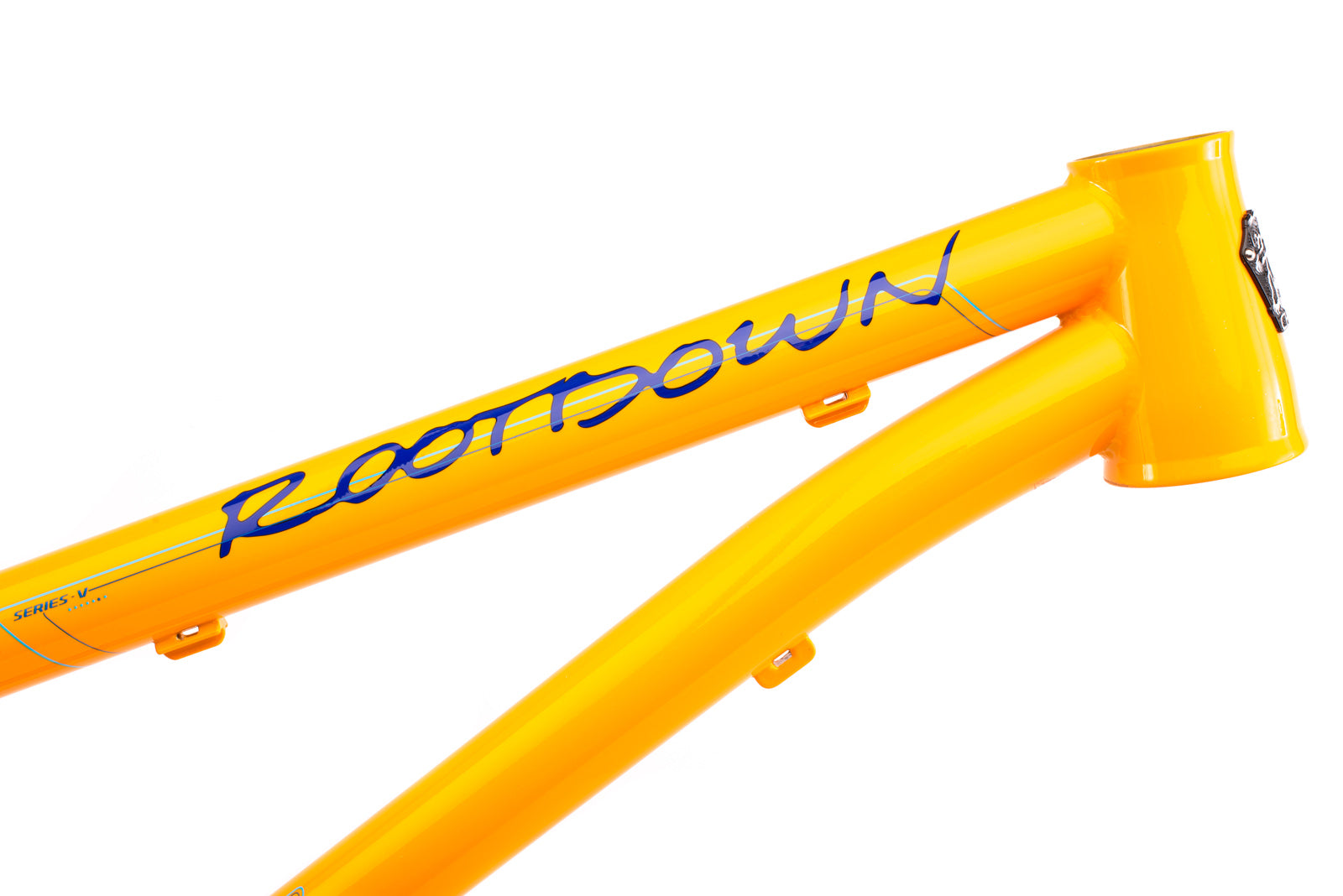

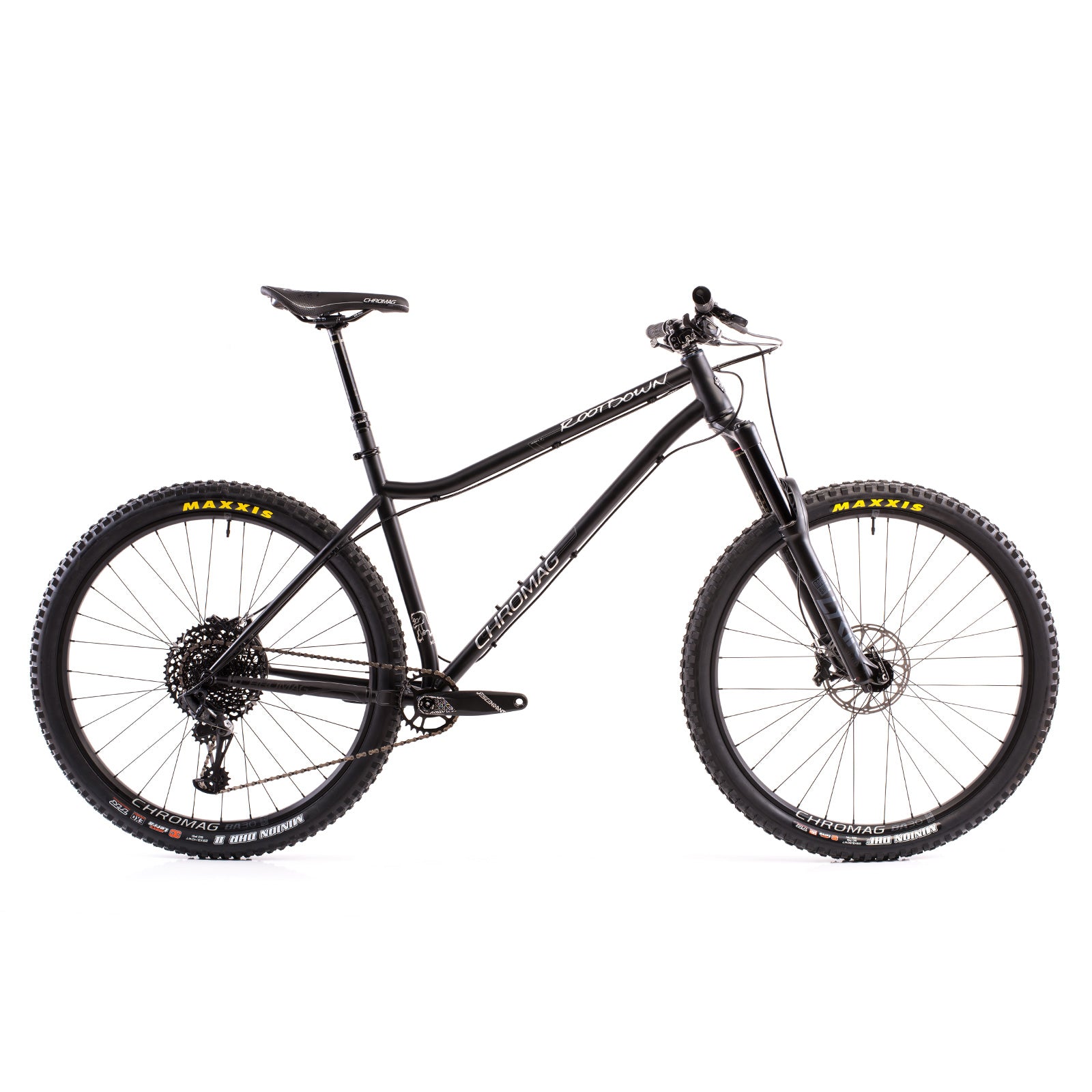

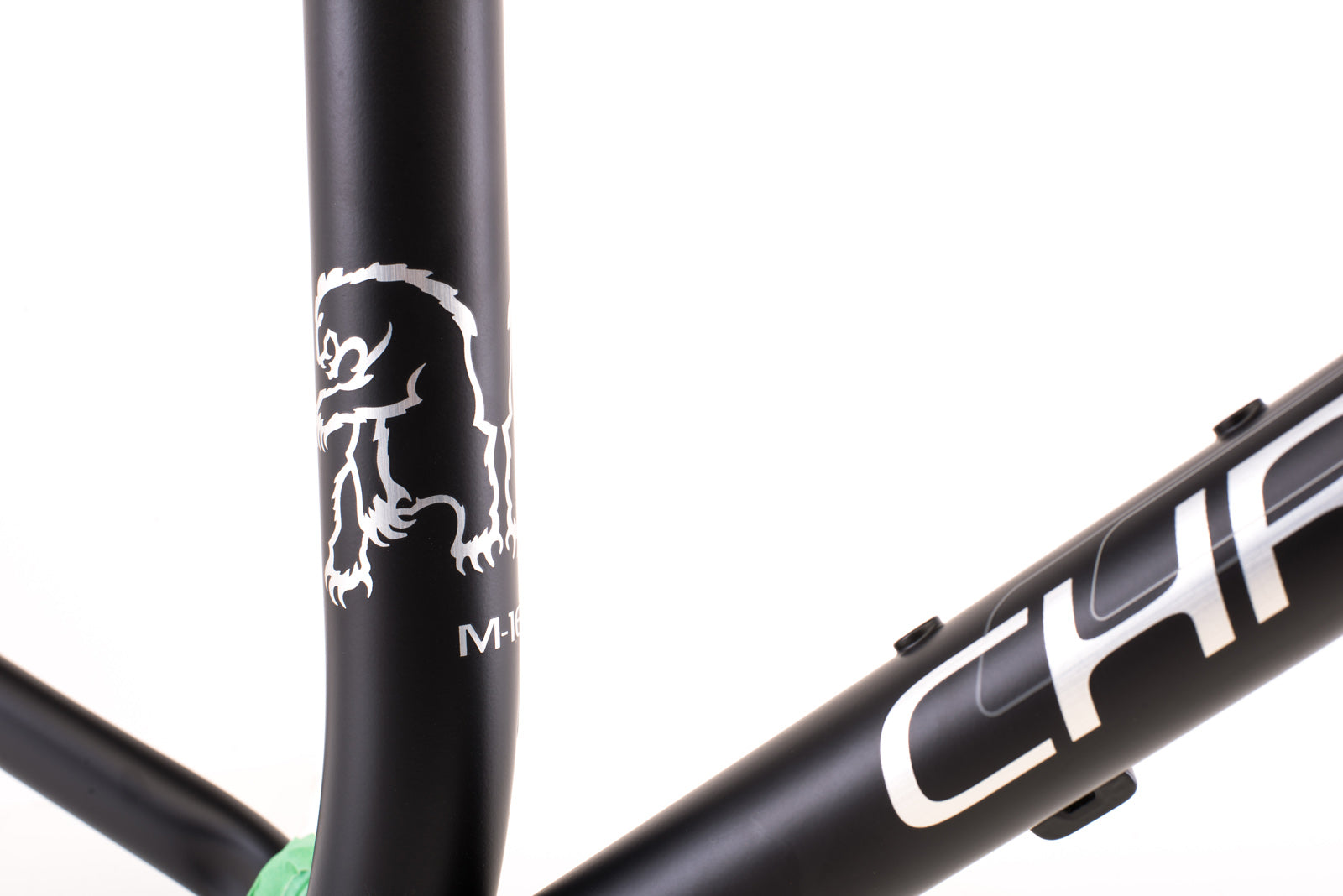

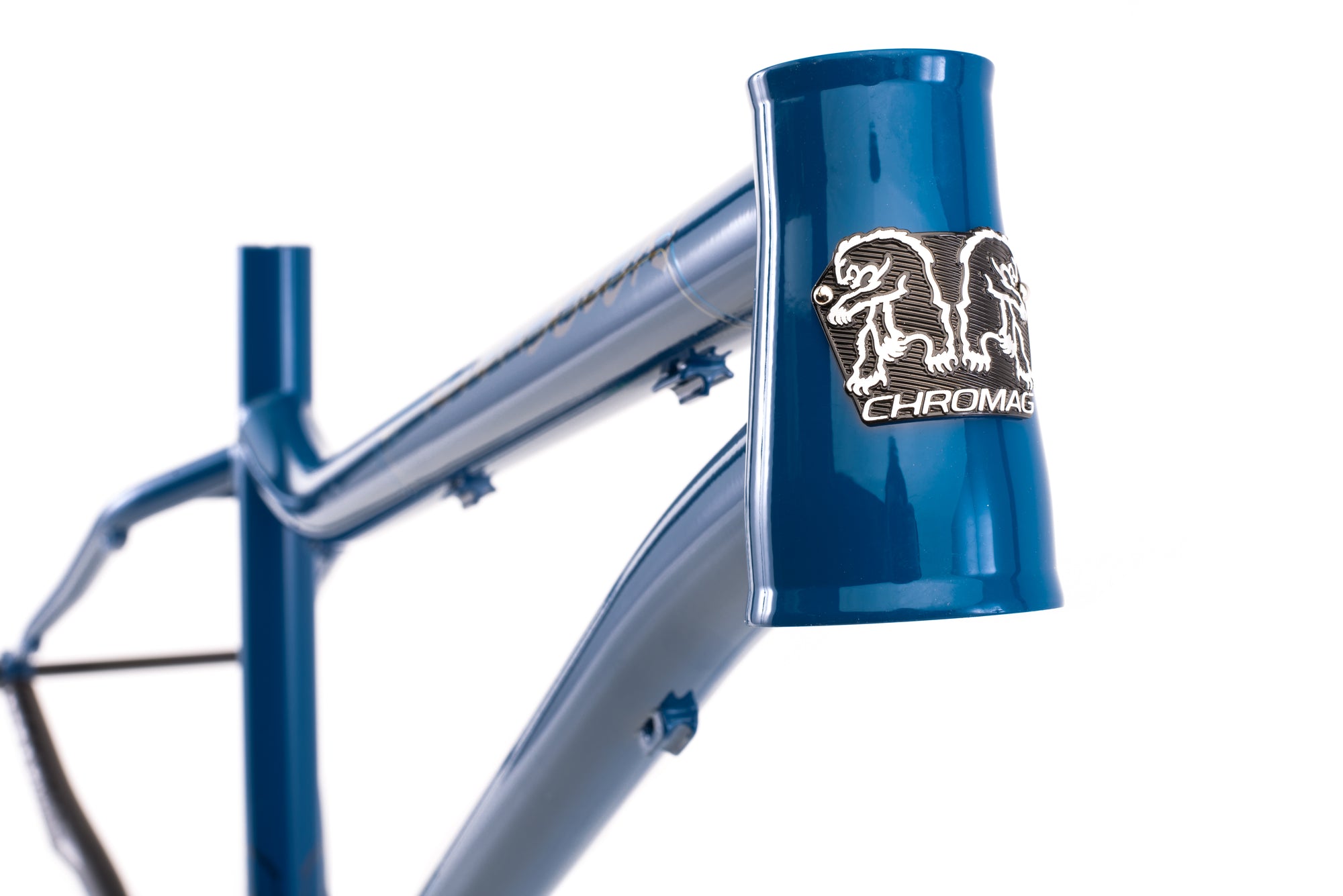

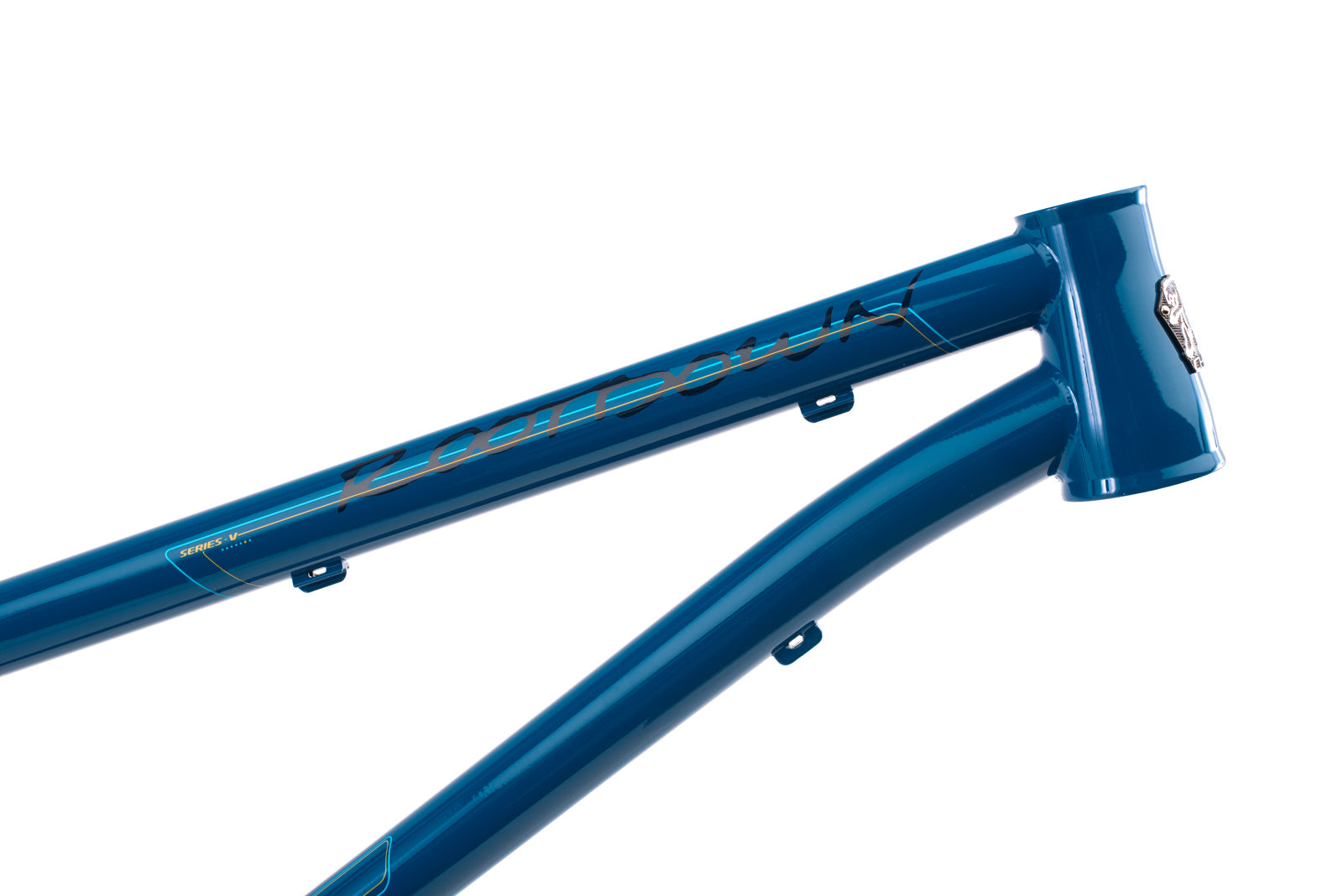

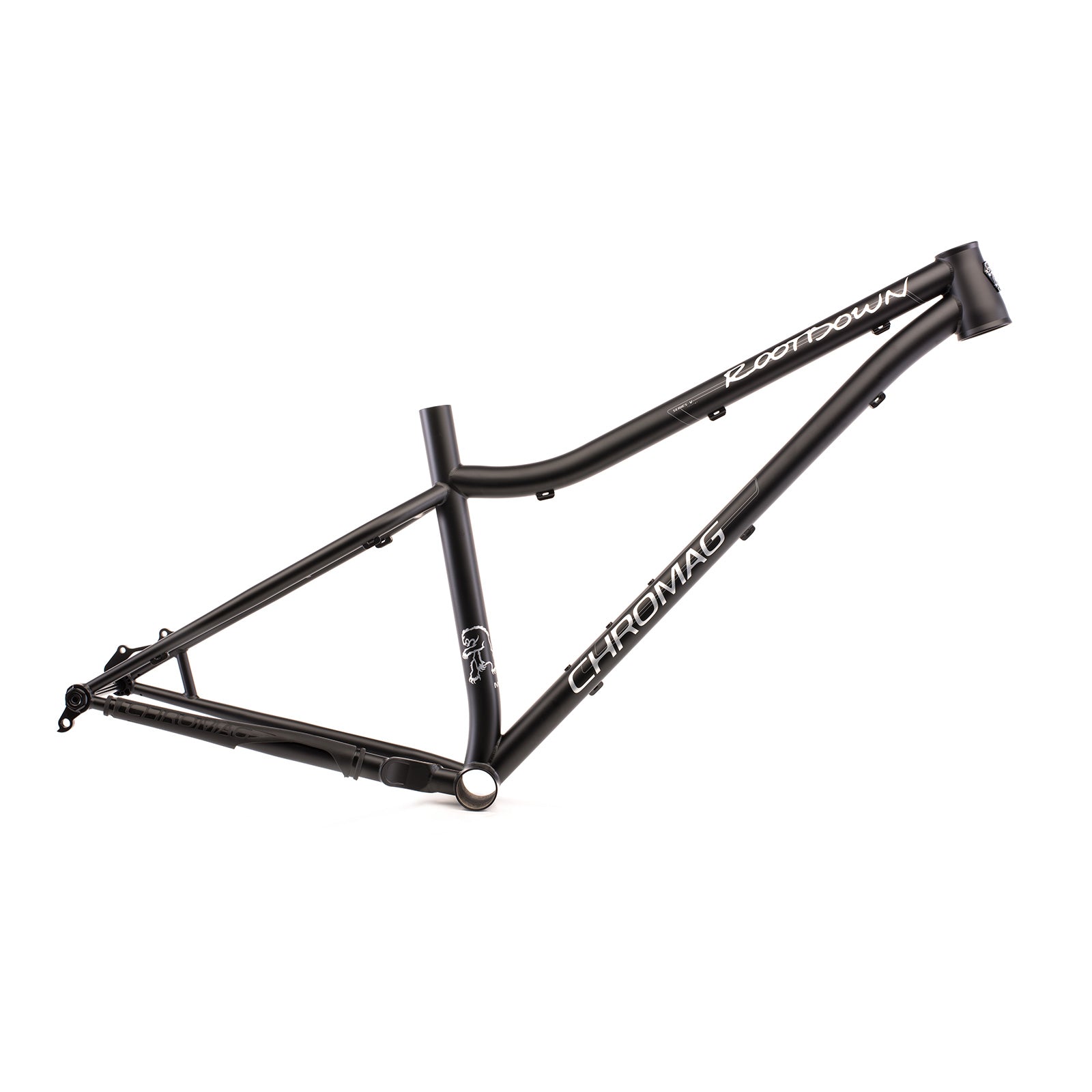

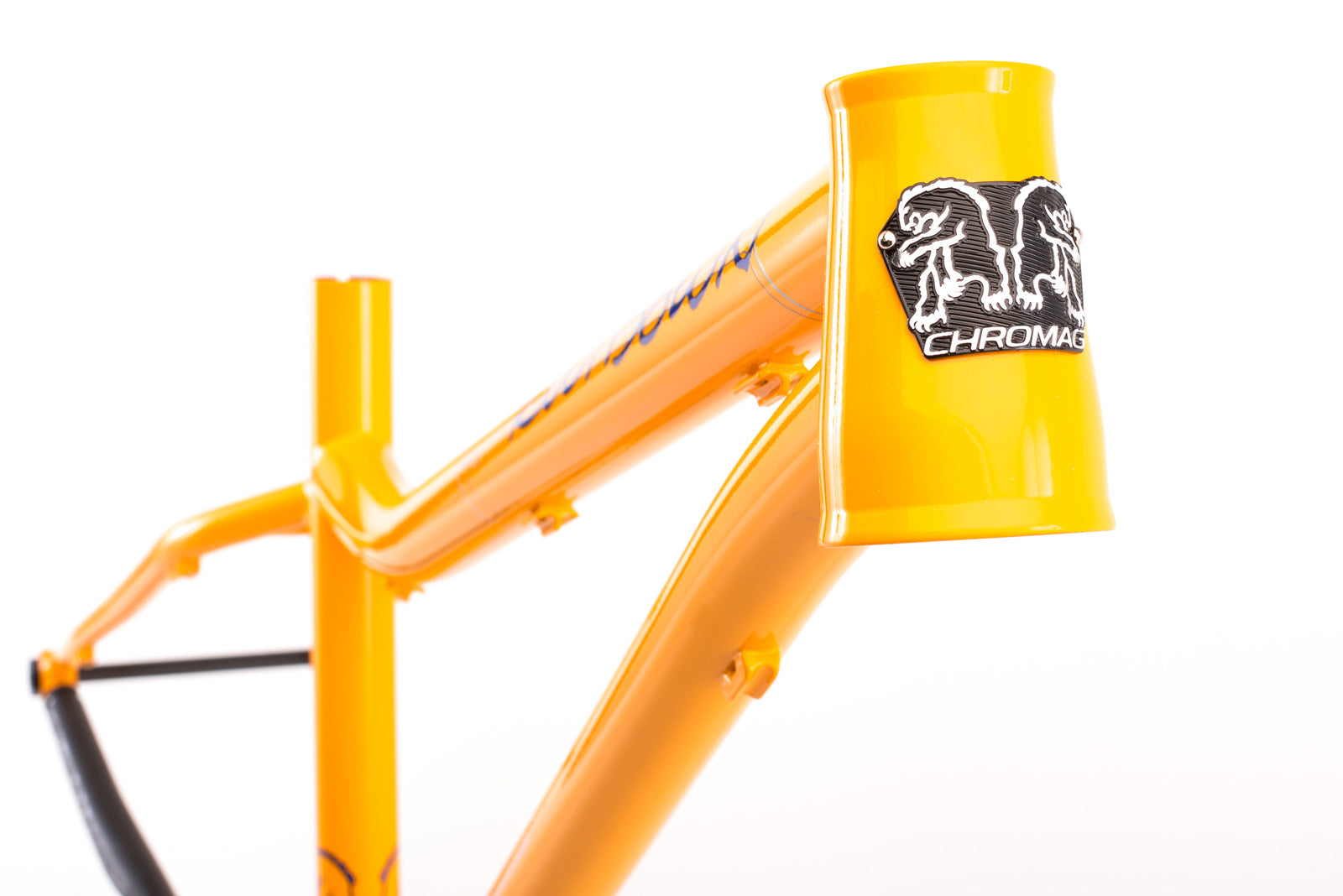

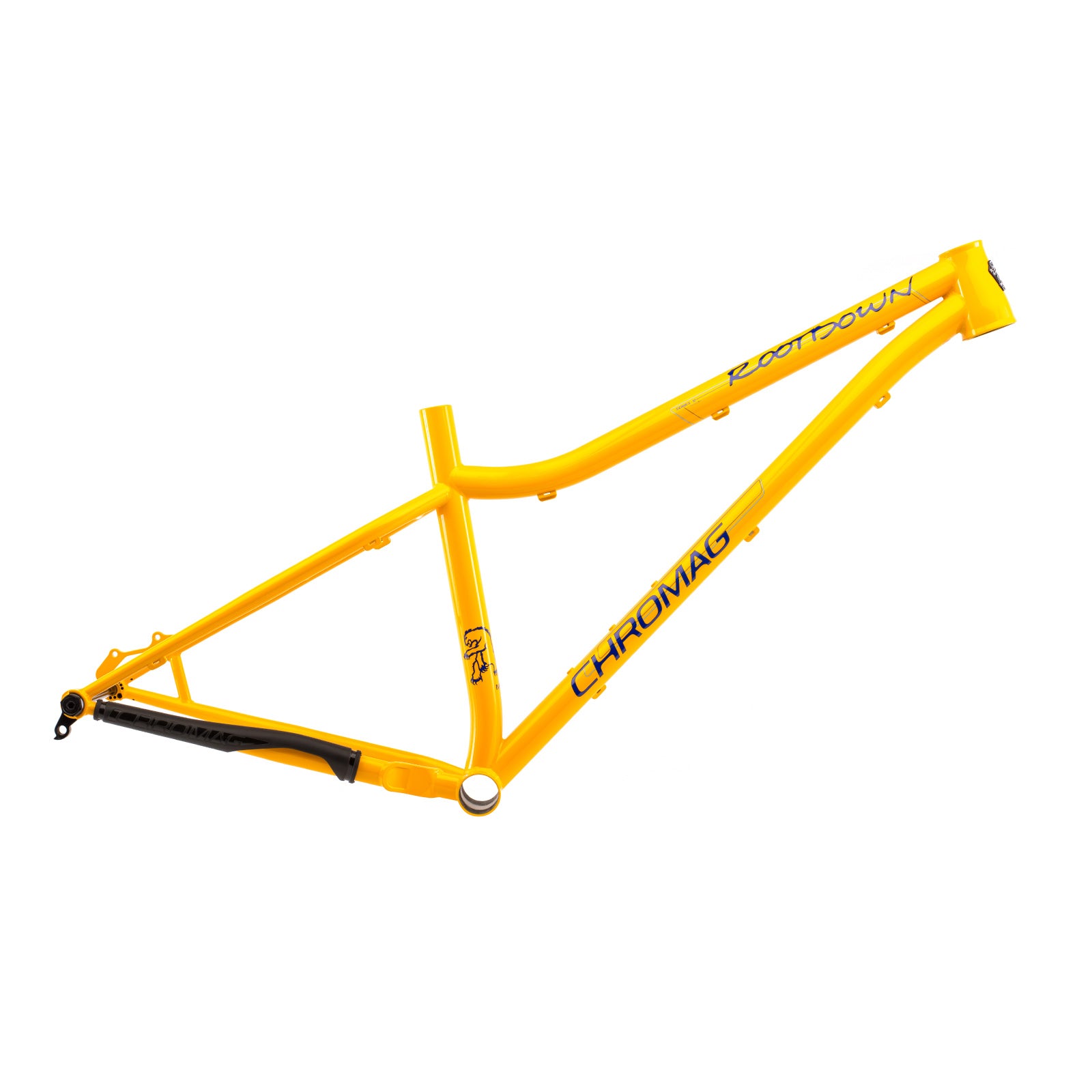

Rootdown 2020
In it's 5th revision, the Rootdown has undergone only a few updates for 2020. We have increased the reach and dropped the seat tube length across all sizes, but other than that it remains largely unchanged. If it ain't broke...

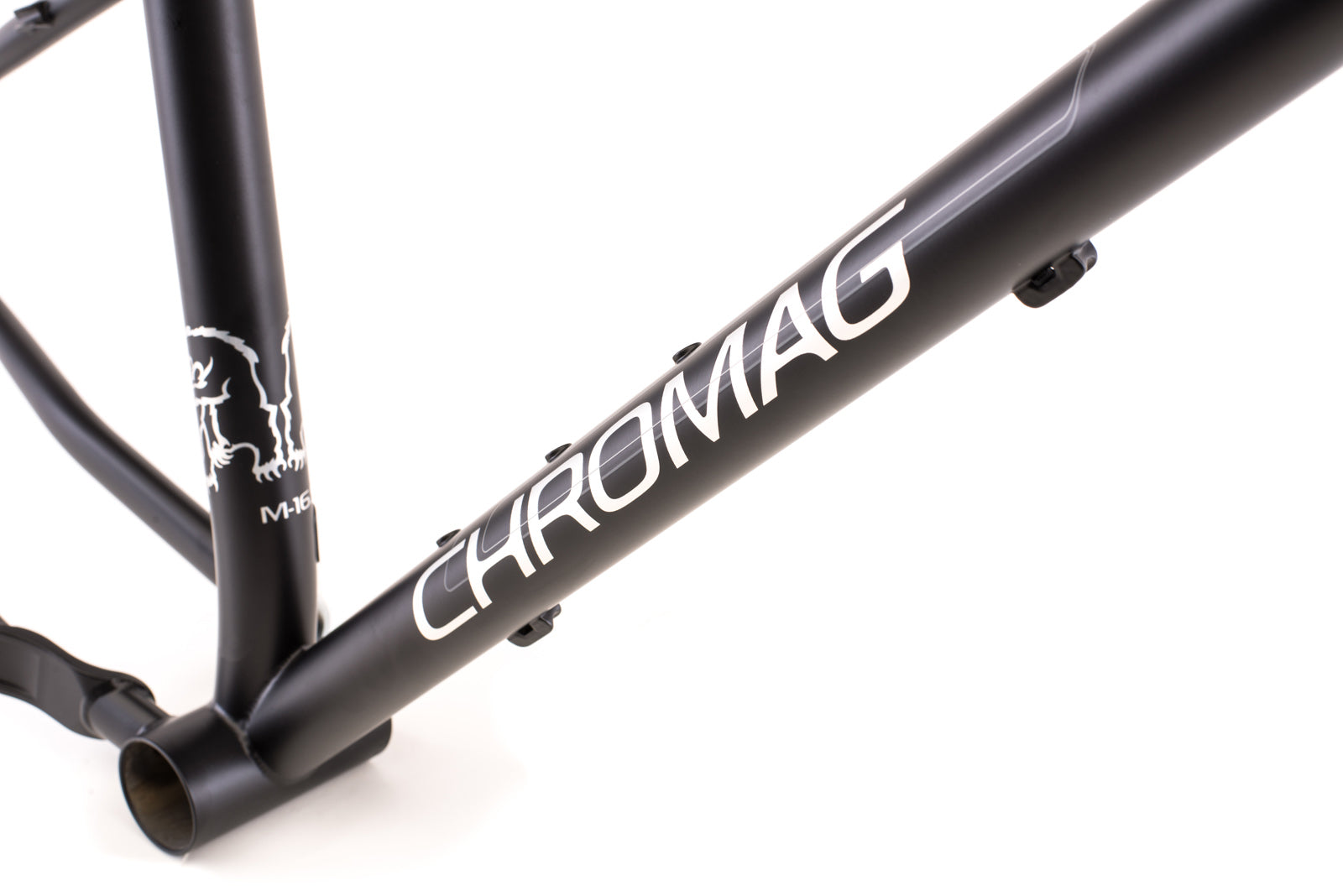

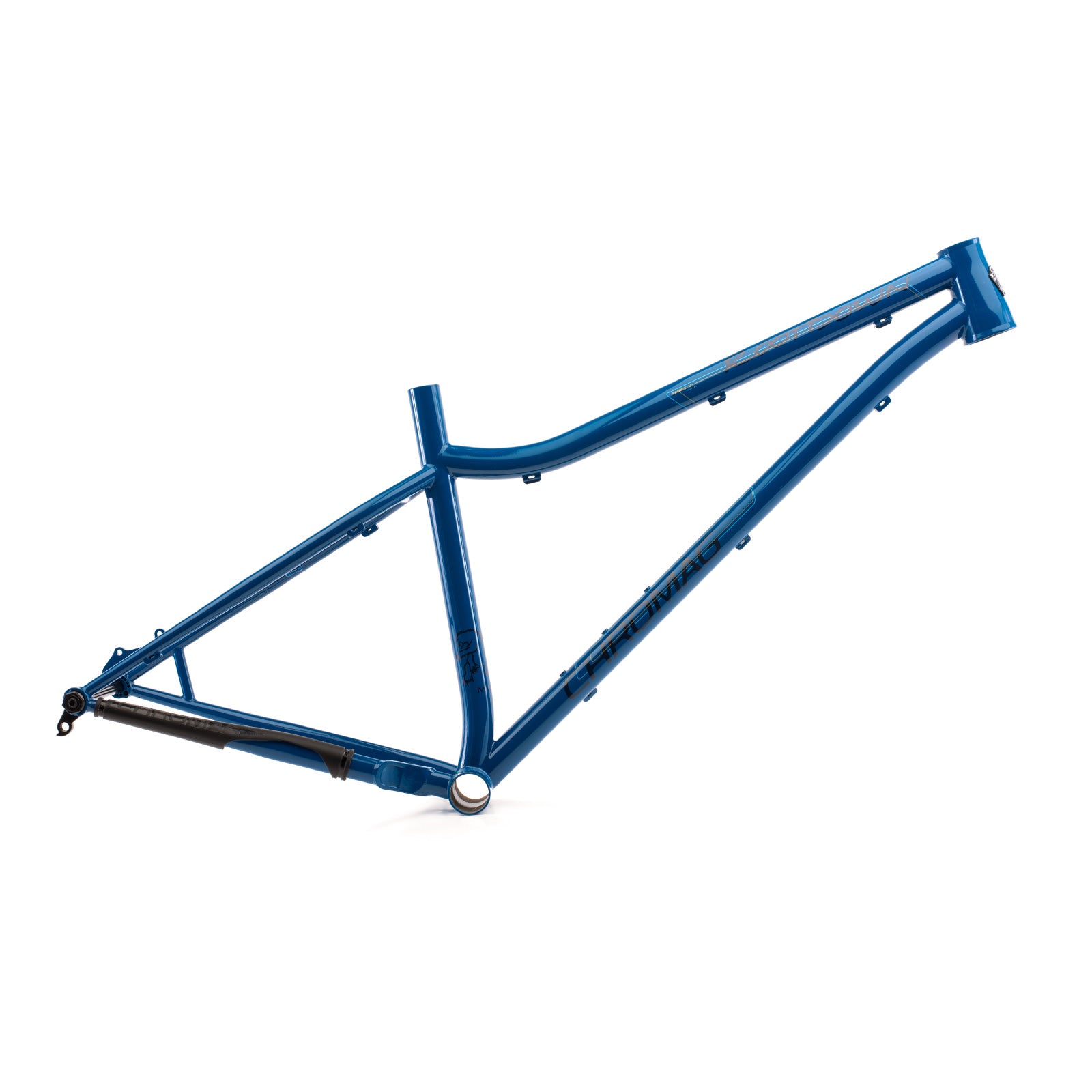

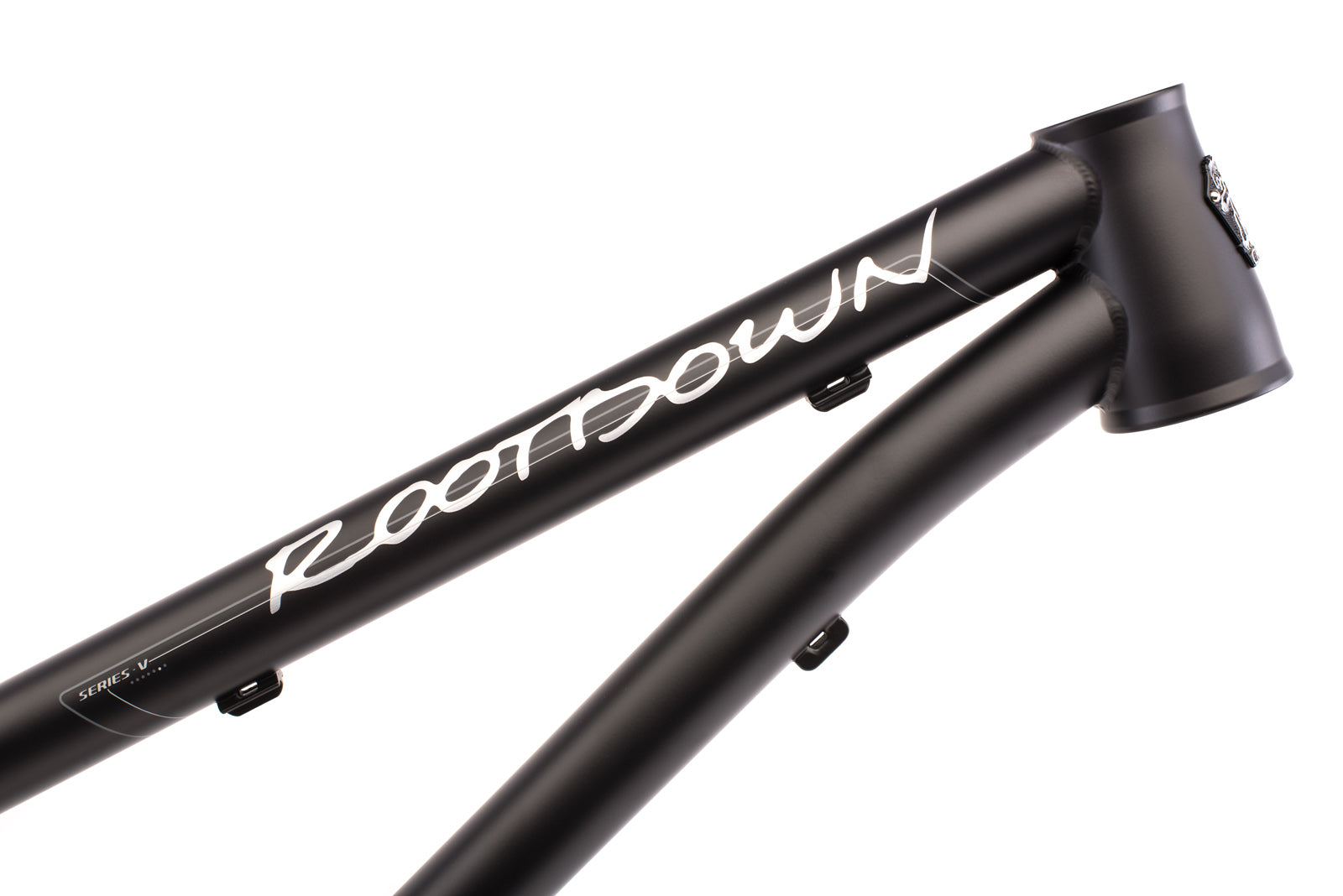

Built with our custom-drawn tubes and featuring a 12x148mm Boost rear end and stealth post routing, this is the evolution of Chromag frame design in 29er form compatible with 27.5+. An agile ascender and a dominant descender that is ready for anything.
The Rootdown is by far and away our most popular frame.
This bike has either been superseded by a new model, or retired from the fleet.
But fear not! We carry a wide variety of spares, and promise to provide support for your trusty steed for a long while yet.
a well oiled machine
If you happen to be the proud owner of a Rootdown 2020, now might be a good time to remove your seatpost and re-grease it.
If they are left too long, galvanic corrosion can occur between the steel of the frame, and aluminium of the seatpost making it very difficult to remove.
Spare parts
We keep a wide variety of spare parts in stock for years after a frame is deprecated.
Click below to find parts for your Rootdown 2020.
Rootdown 2020 Geo
| Frame Size | STypical Rider Height: 155cm - 165cm | MTypical Rider Height: 163cm - 174cm | M/LTypical Rider Height: 172cm - 183cm | LTypical Rider Height: 181cm - 192cm | XLTypical Rider Height: 190cm - 200cm |
|---|---|---|---|---|---|
| 630 | 630 | 639 | 648 | 657 | |
| 421 | 446 | 463 | 487 | 503 | |
| 578 | 603 | 622 | 648 | 667 | |
| 105 | 105 | 105 | 115 | 125 | |
| 1177 | 1202 | 1223 | 1251 | 1272 | |
| 50.8 | 50.8 | 50.8 | 50.8 | 50.8 | |
| 320 | 320 | 320 | 320 | 320 | |
| 677 | 714 | 738 | 762 | 799 | |
| 425 | 425 | 425 | 425 | 425 | |
| 368 | 406 | 431 | 456 | 494 | |
| 188 | 226 | 251 | 276 | 314 | |
| 64° | |||||
| 76° | |||||
| 29'' | |||||
* Max. post insertion based on Rockshox Reverb
