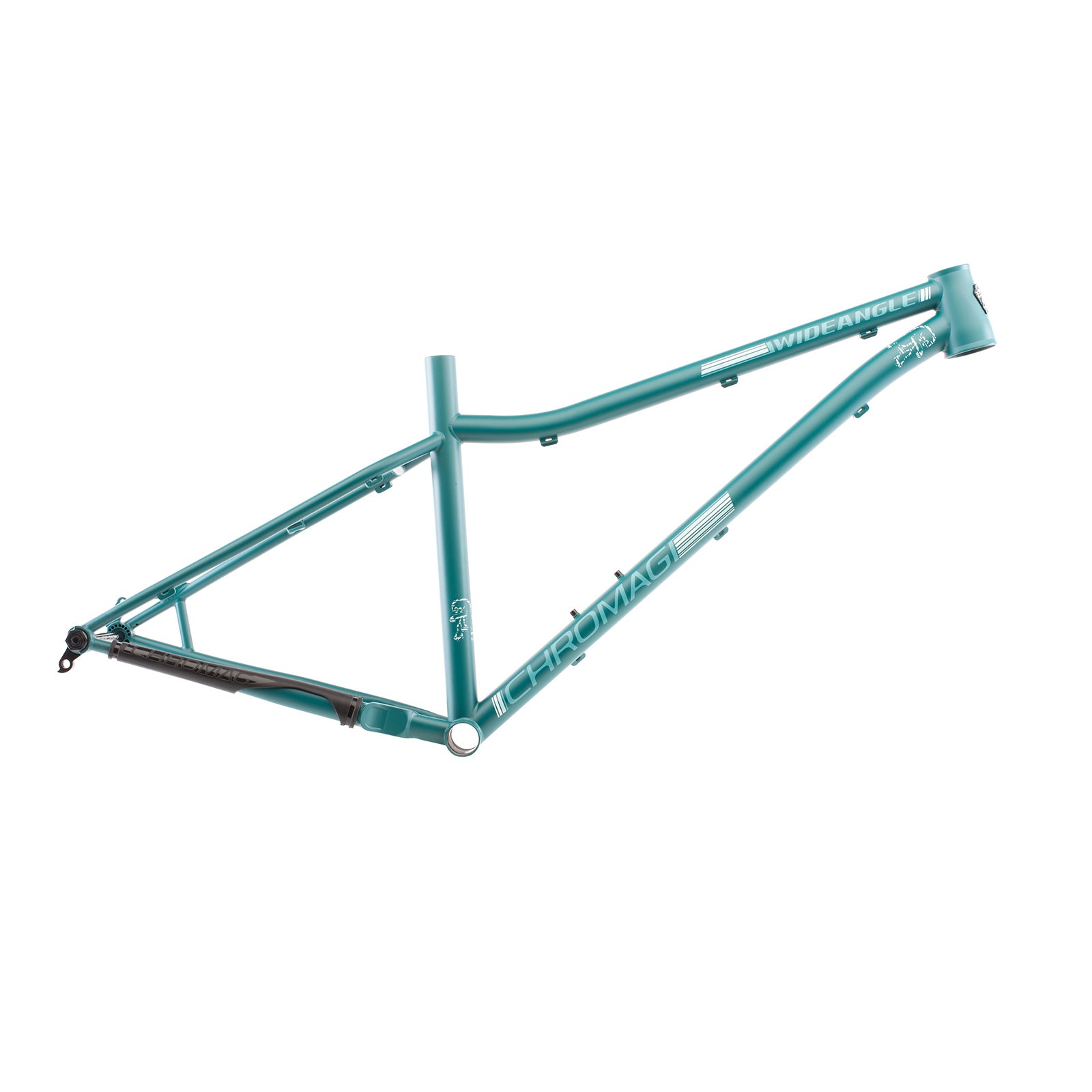

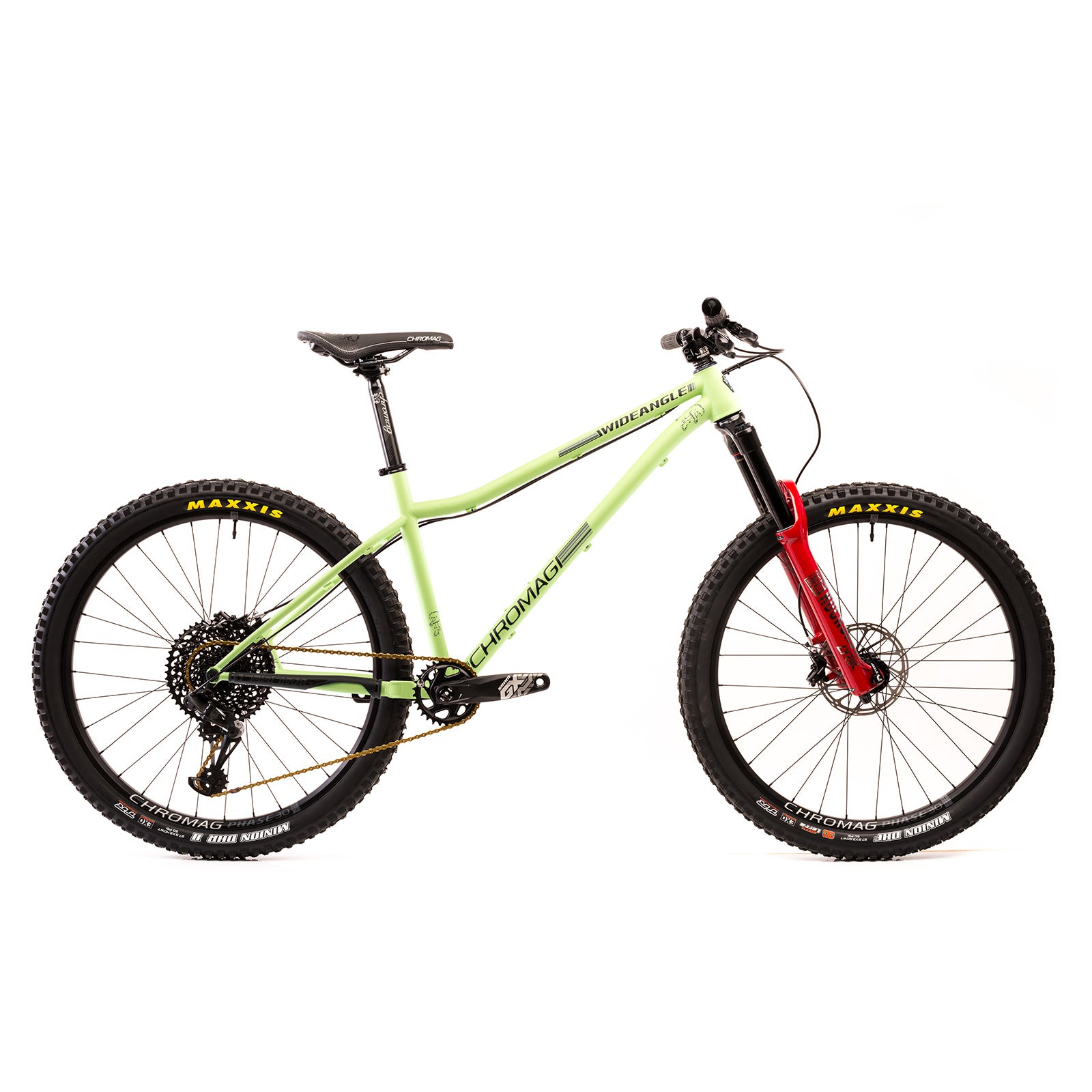

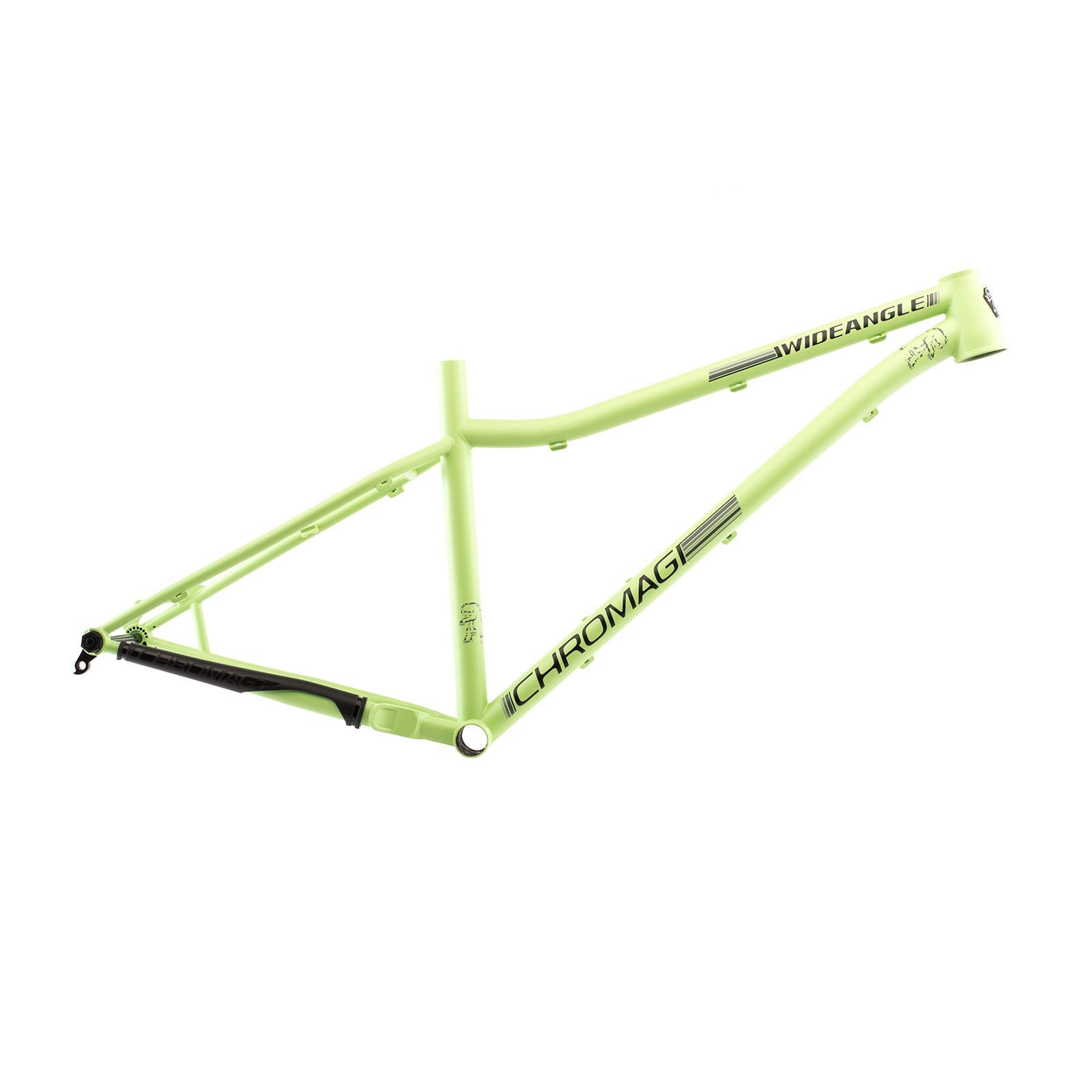

Wideangle 2020
The Wideangle has undergone several changes including updated geometry, new features, and compatibilities. The Wideangle is our 27.5 wheel, all mountain hardtail made by hand at our partner factory in Taiwan. The newest version features longer front end geometry with relaxed headtube and steepened seattube. Oriented to longer travel forks, the Wideangle positioning is readjusted for the best balance of direction control and stability.

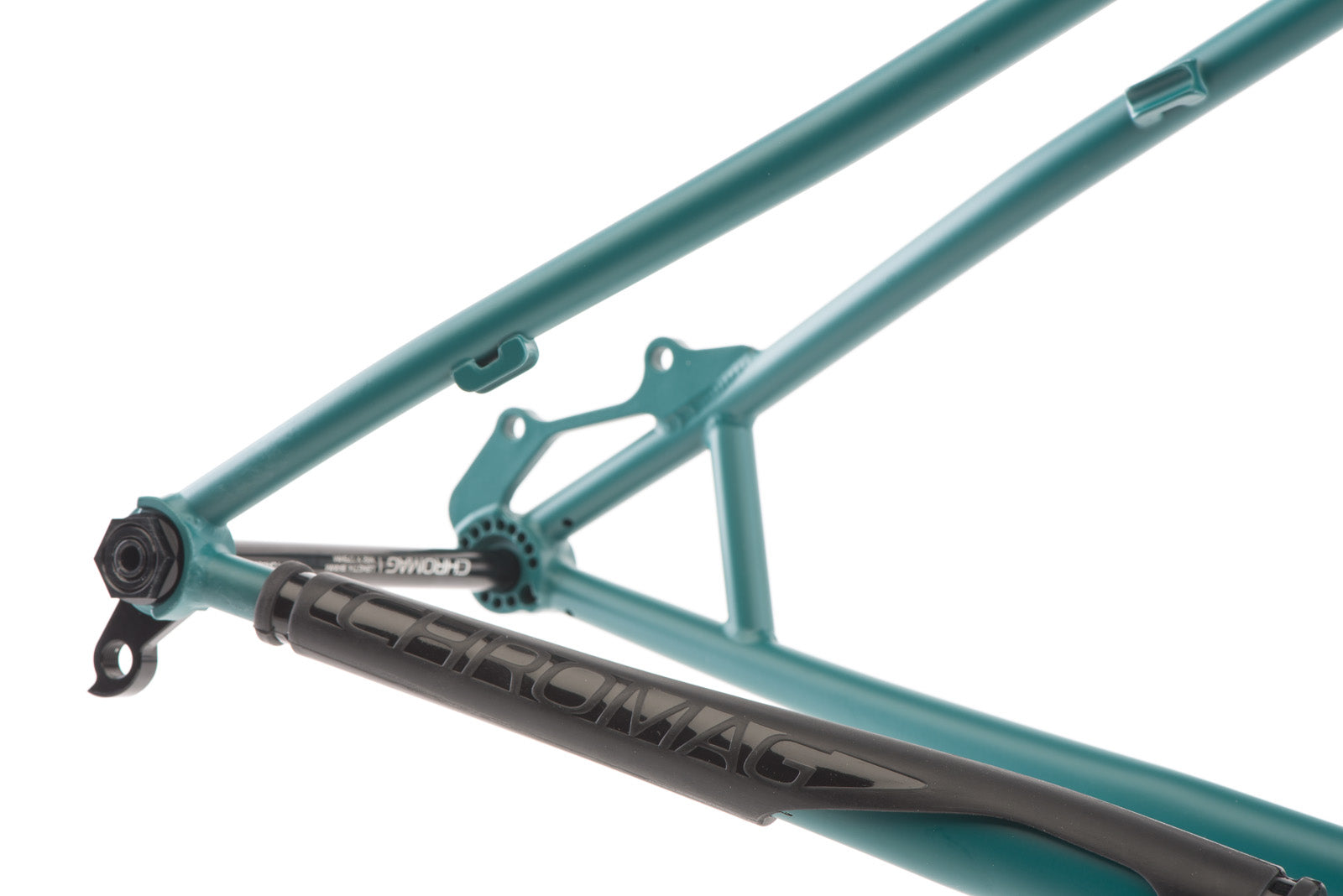

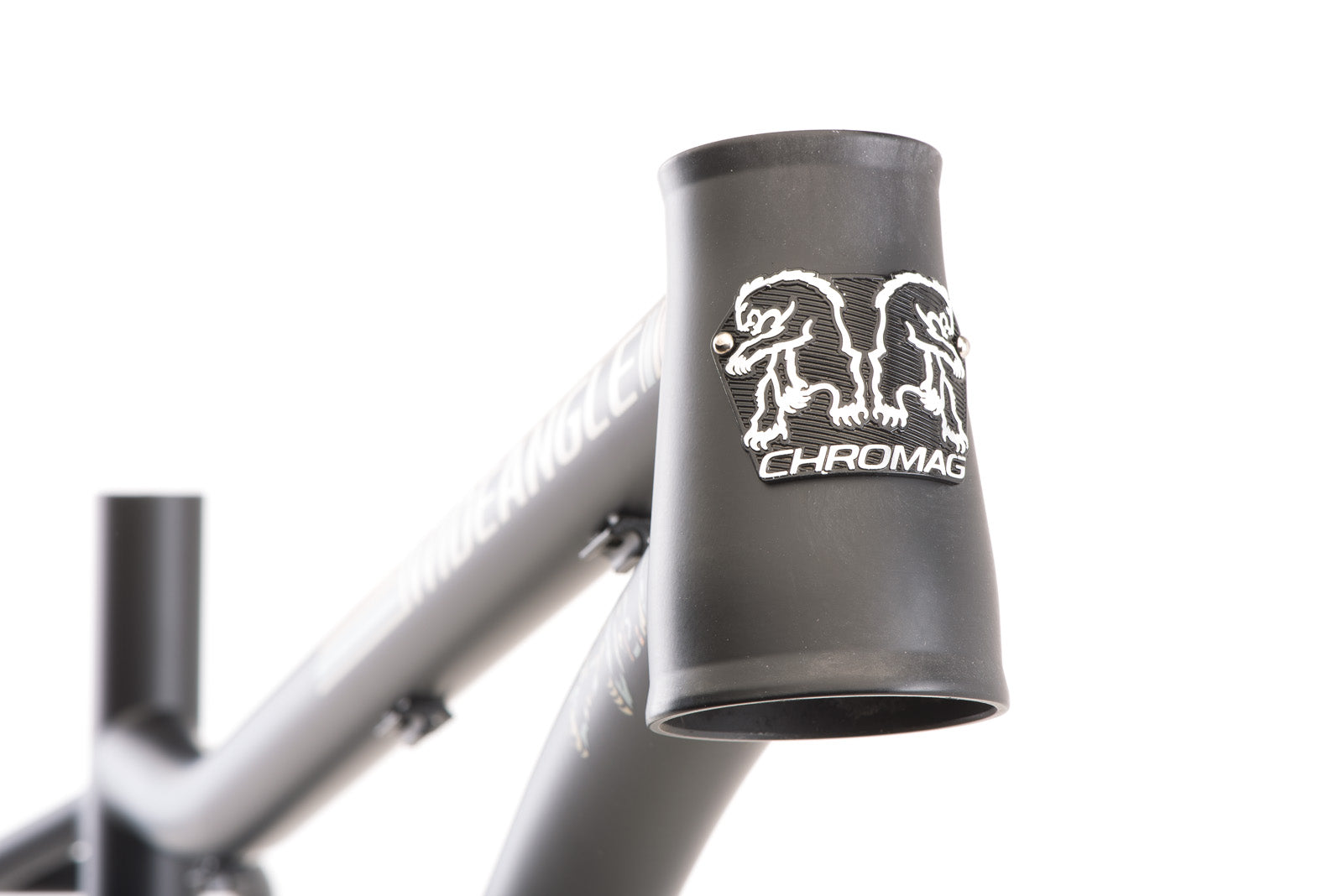

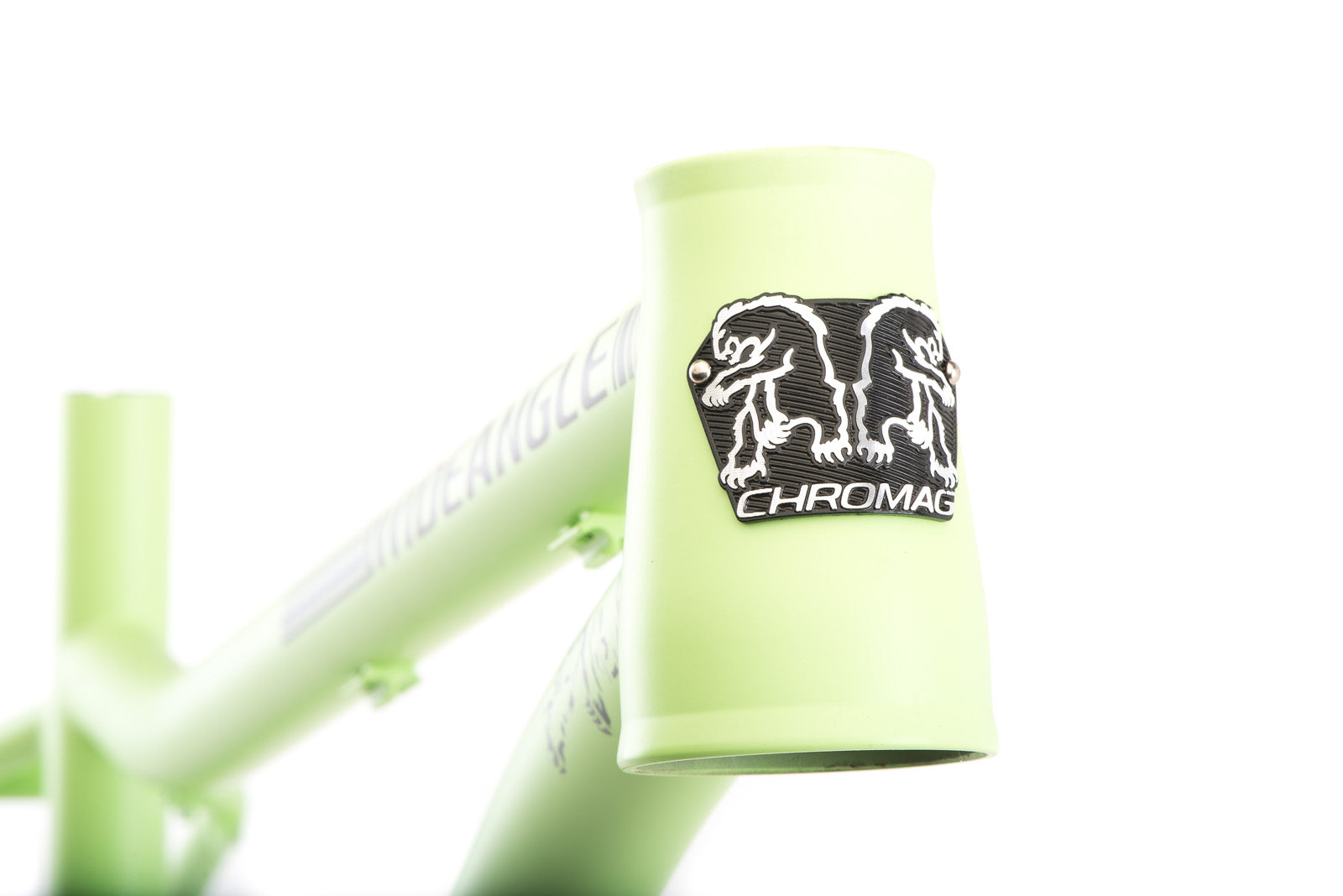

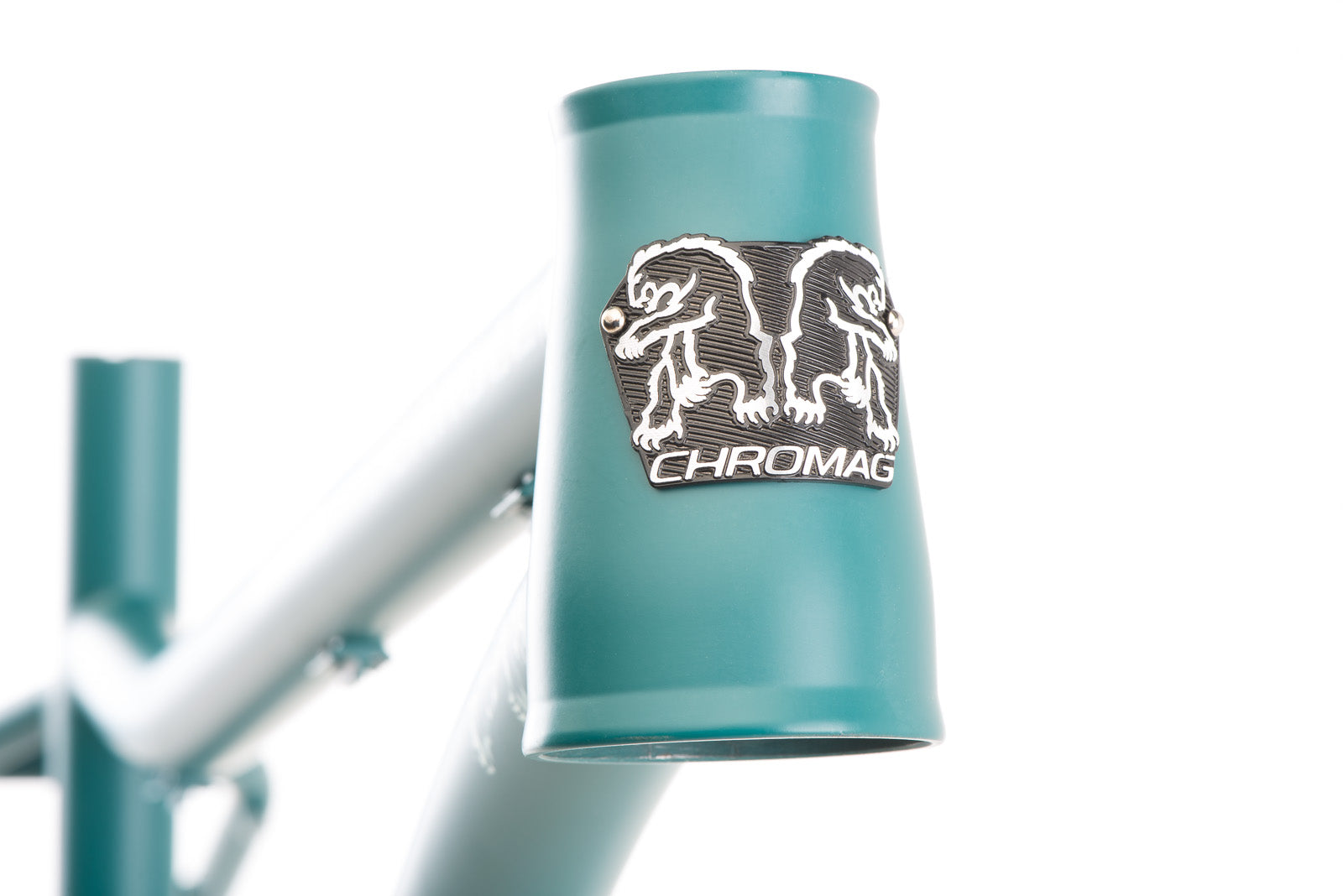

It also includes boost rear wheel spacing, tapered headtube and stealth seattube routing. A new machined yoke paired with the boost layout means that we can increase tire clearance significantly. For those interested in dabbling in the future option of 26+, there is clearance to explore that route.
This bike has either been superseded by a new model, or retired from the fleet.
But fear not! We carry a wide variety of spares, and promise to provide support for your trusty steed for a long while yet.
a well oiled machine
If you happen to be the proud owner of a Wideangle 2020, now might be a good time to remove your seatpost and re-grease it.
If they are left too long, galvanic corrosion can occur between the steel of the frame, and aluminium of the seatpost making it very difficult to remove.
Spare parts
We keep a wide variety of spare parts in stock for years after a frame is deprecated.
Click below to find parts for your Wideangle 2020.
Wideangle 2020 Geo
| Frame Size | STypical Rider Height: 155cm - 165cm | MTypical Rider Height: 163cm - 174cm | M/LTypical Rider Height: 172cm - 183cm | LTypical Rider Height: 181cm - 192cm |
|---|---|---|---|---|
| 603 | 603 | 603 | 612 | |
| 422 | 440 | 464 | 484 | |
| 572 | 590 | 614 | 636 | |
| 105 | 105 | 105 | 115 | |
| 1156 | 1174 | 1198 | 1222 | |
| 33 | 33 | 33 | 33 | |
| 316 | 316 | 316 | 316 | |
| 686 | 723 | 748 | 772 | |
| 419 | 419 | 419 | 419 | |
| 381 | 419 | 445 | 470 | |
| 201 | 239 | 265 | 290 | |
| 65° | ||||
| 76° | ||||
| 27.5" | ||||
* Max. post insertion based on Rockshox Reverb
