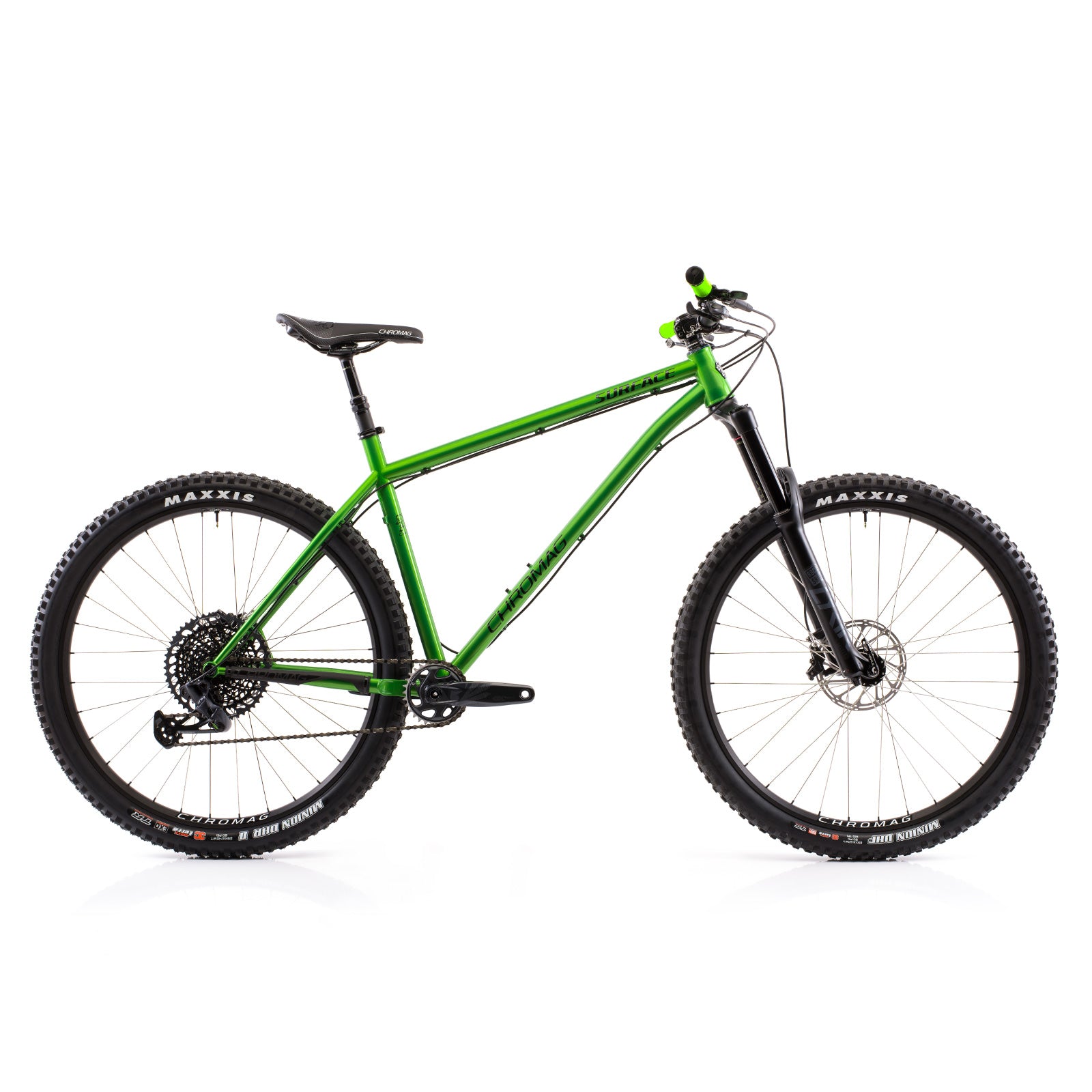

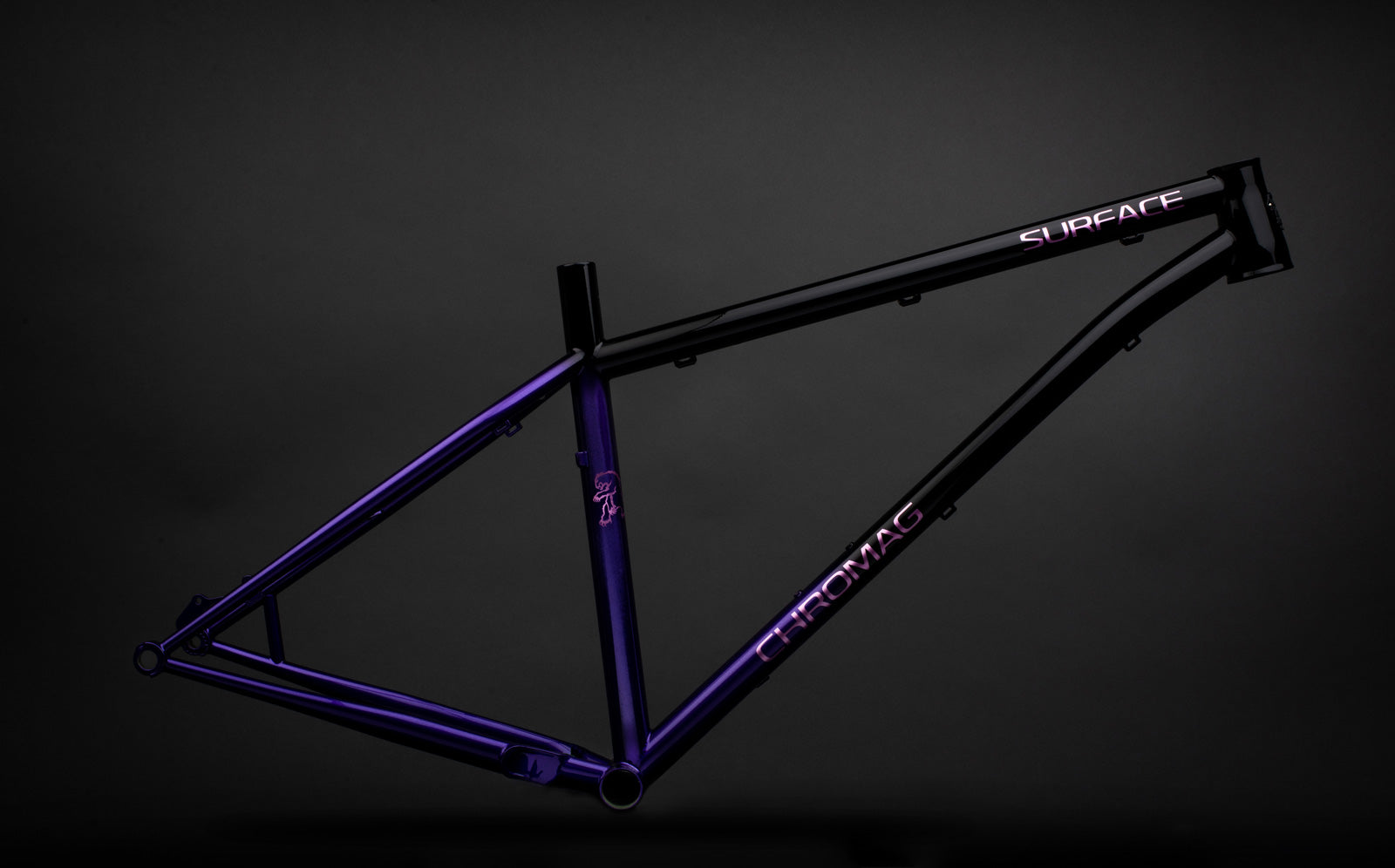

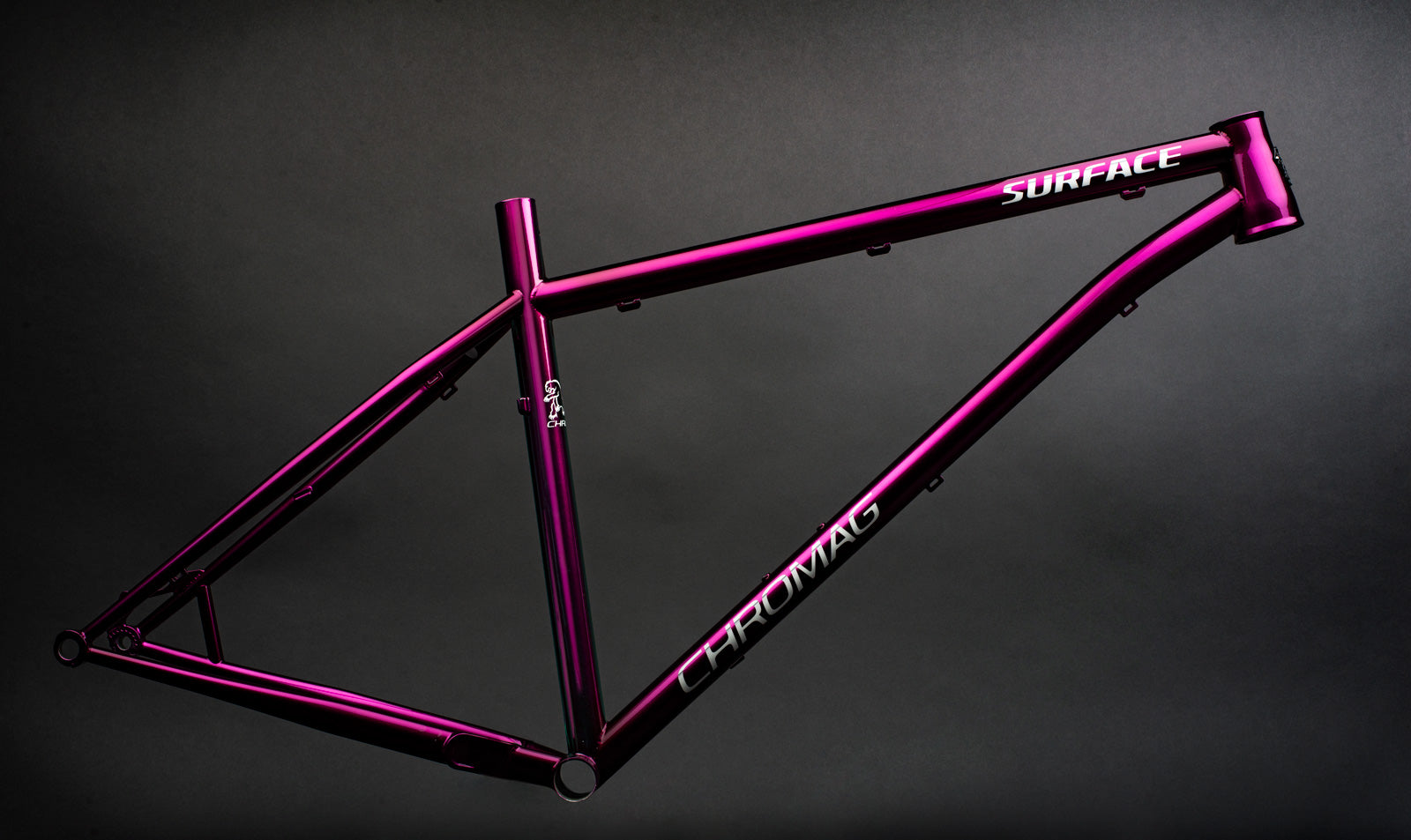

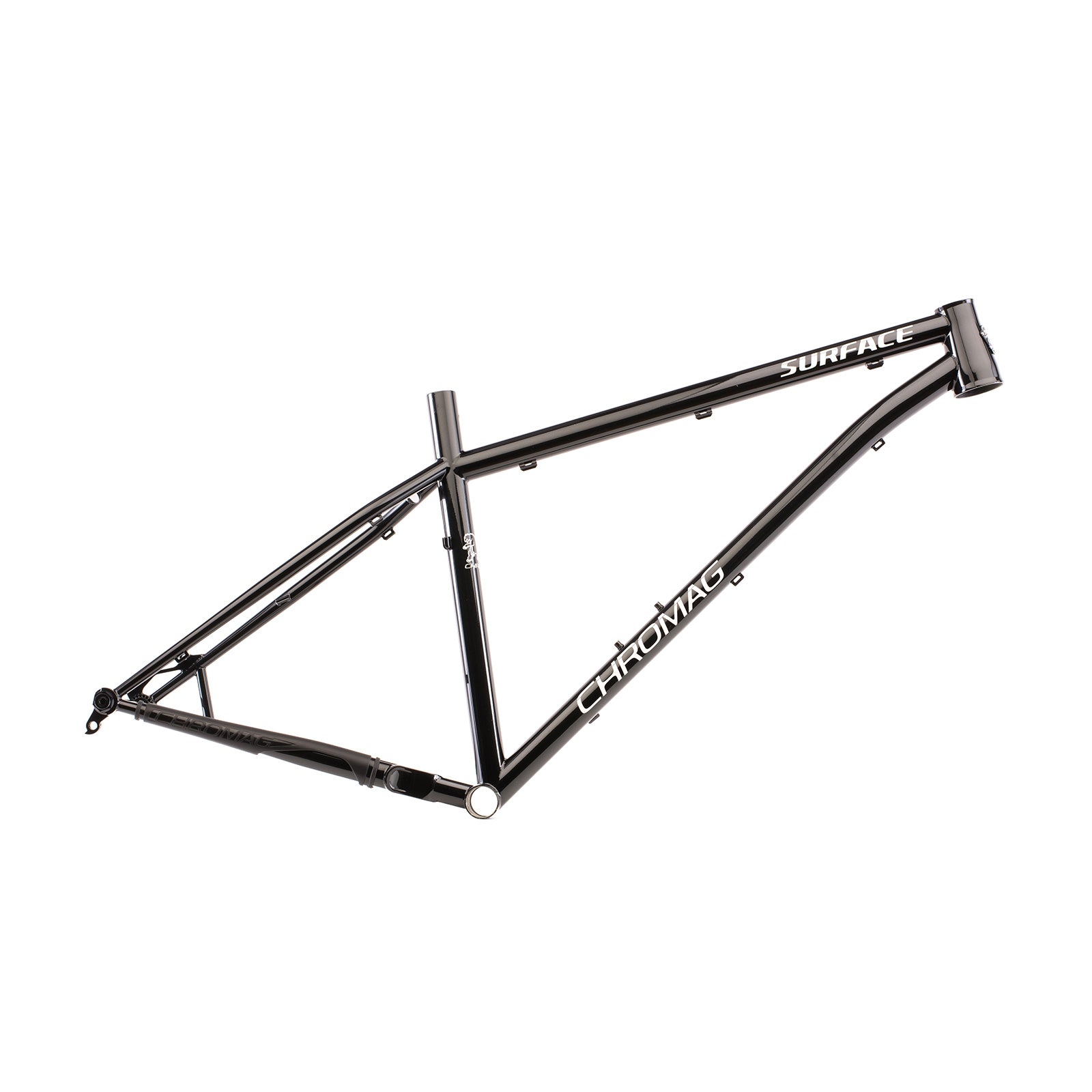

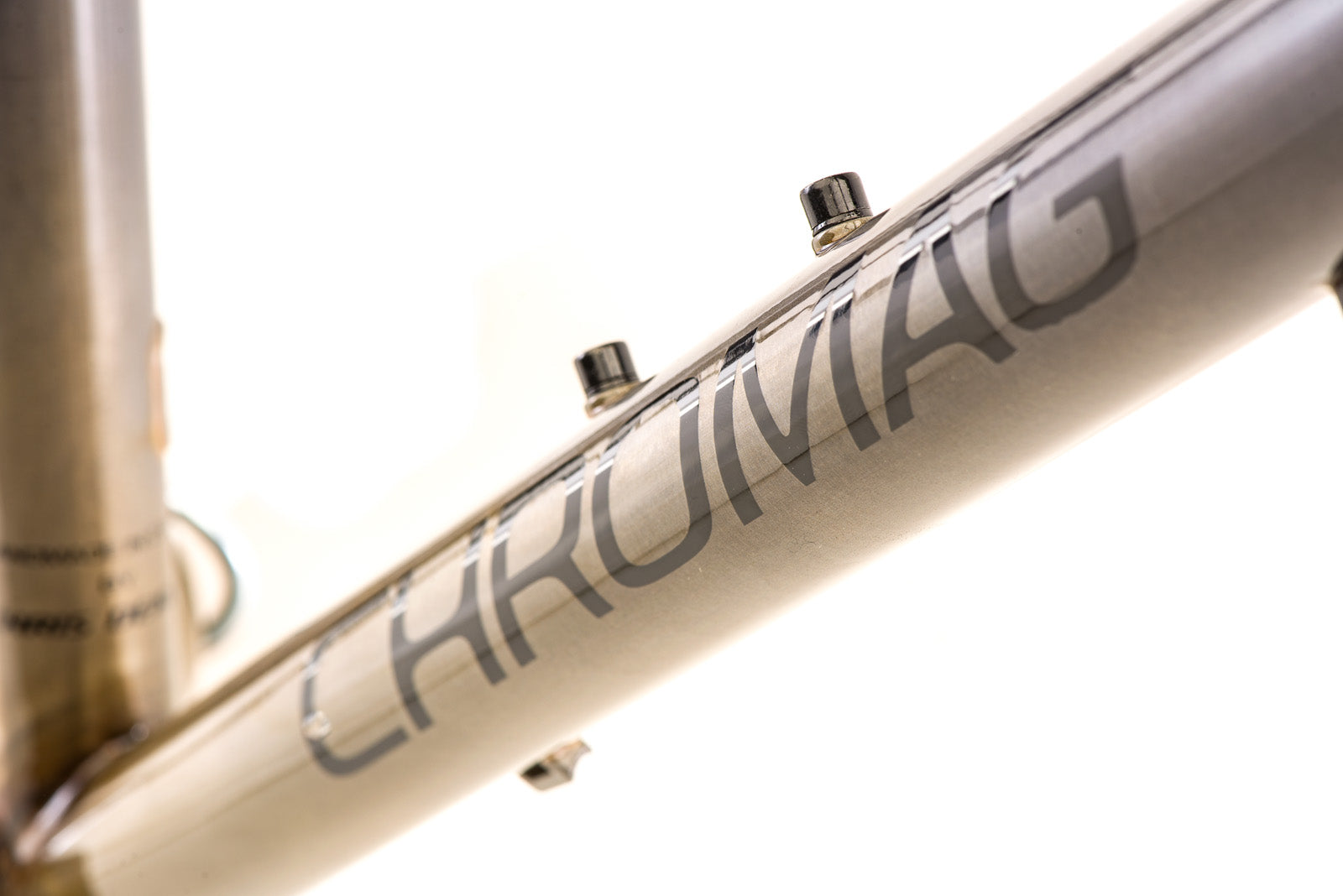

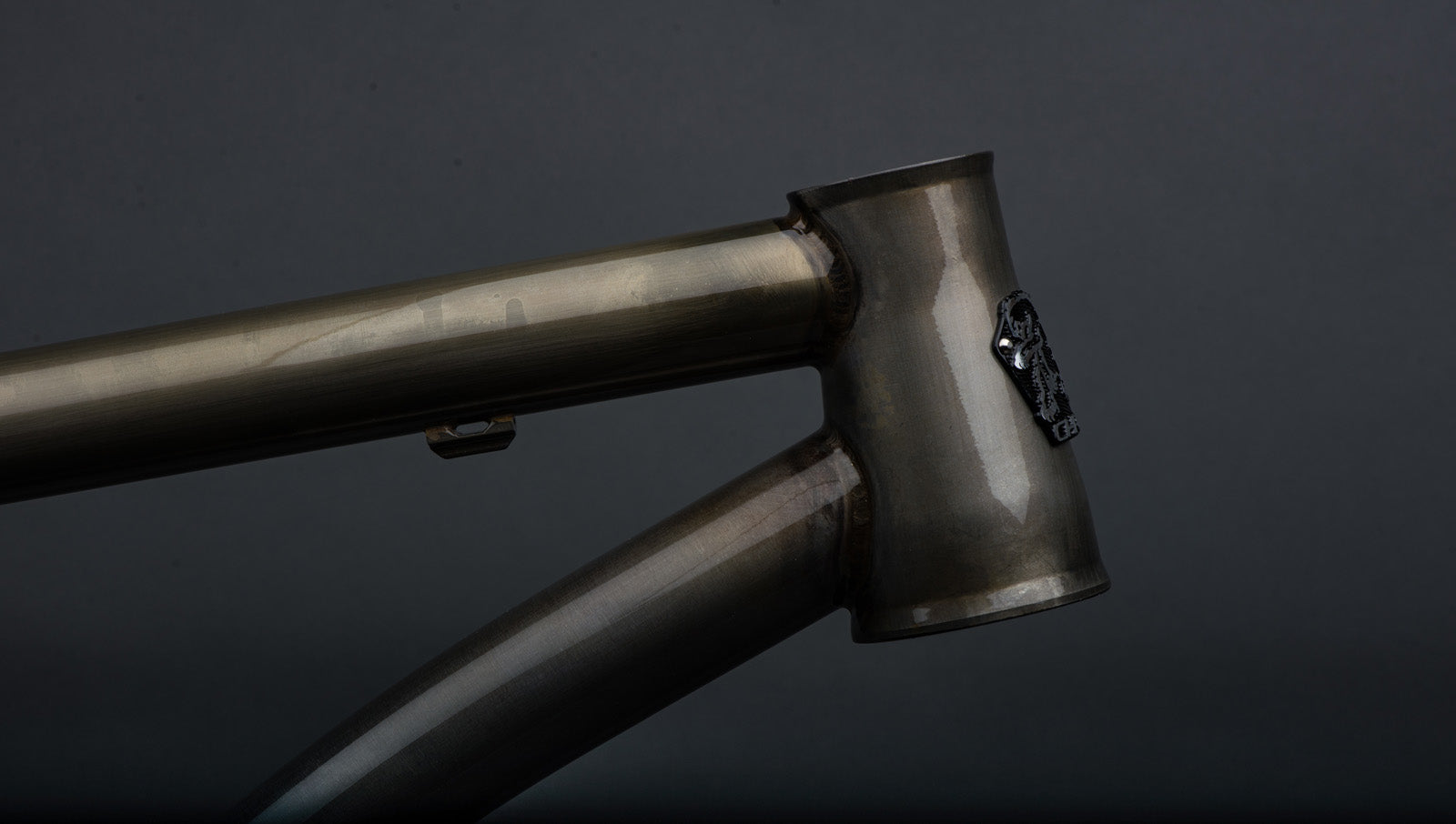

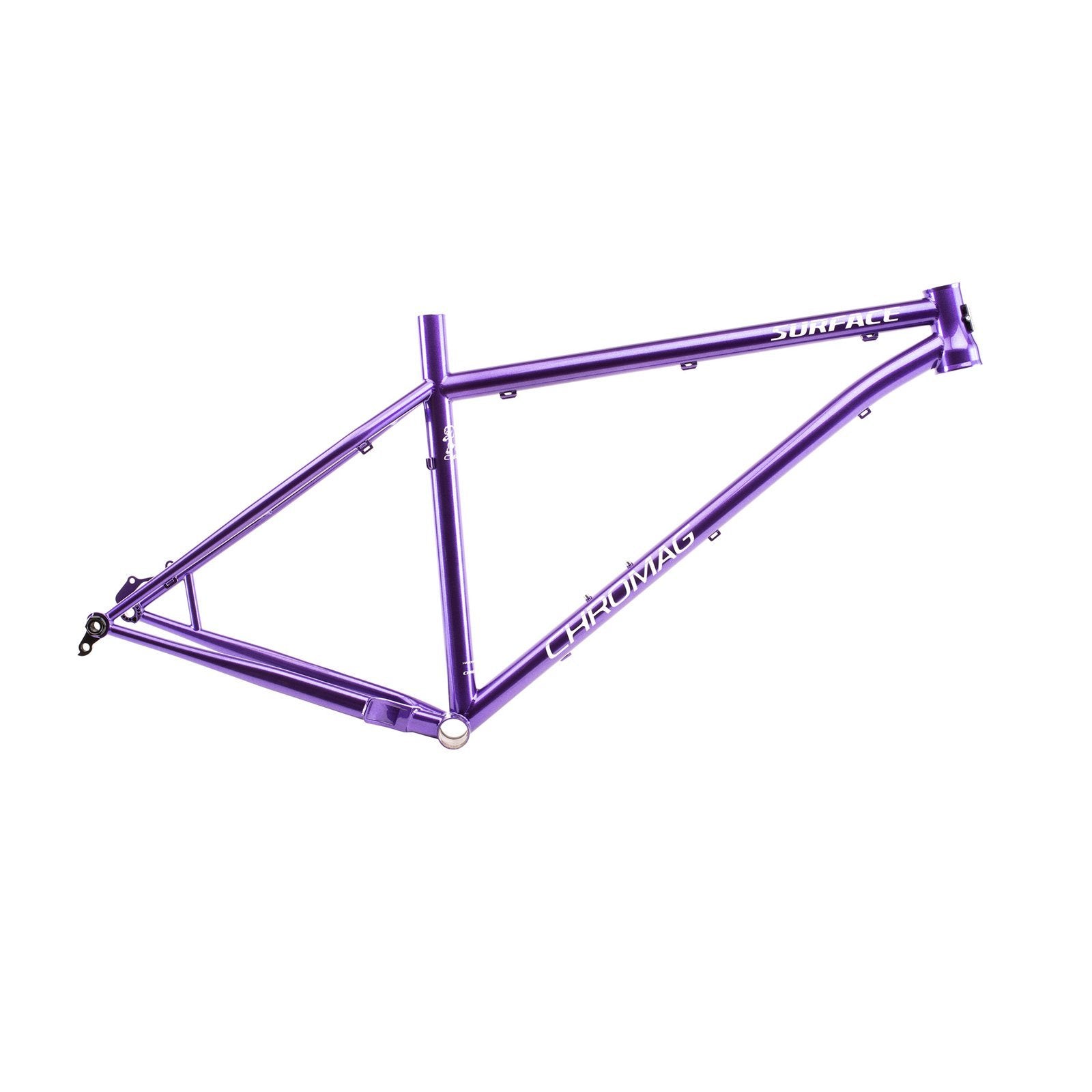

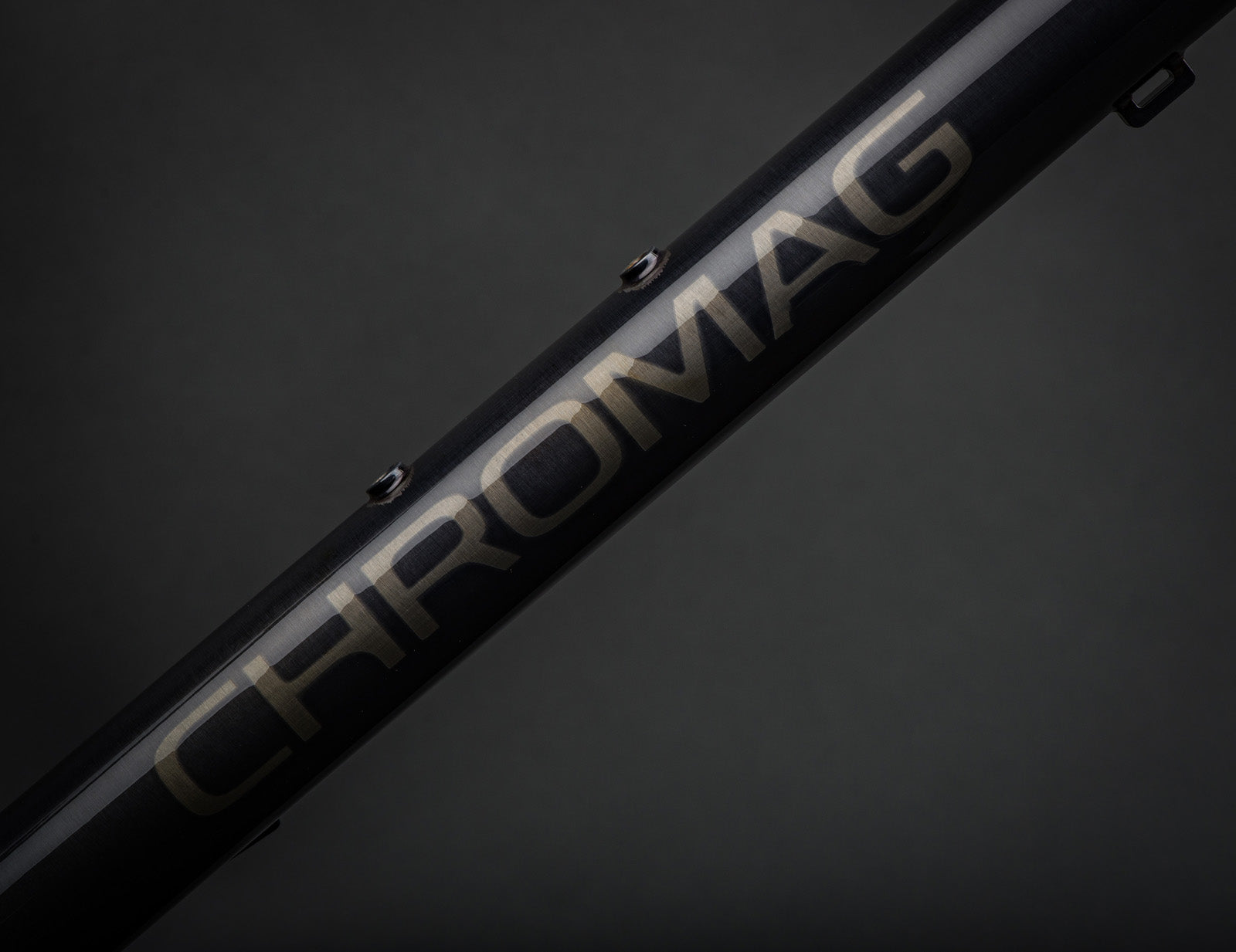

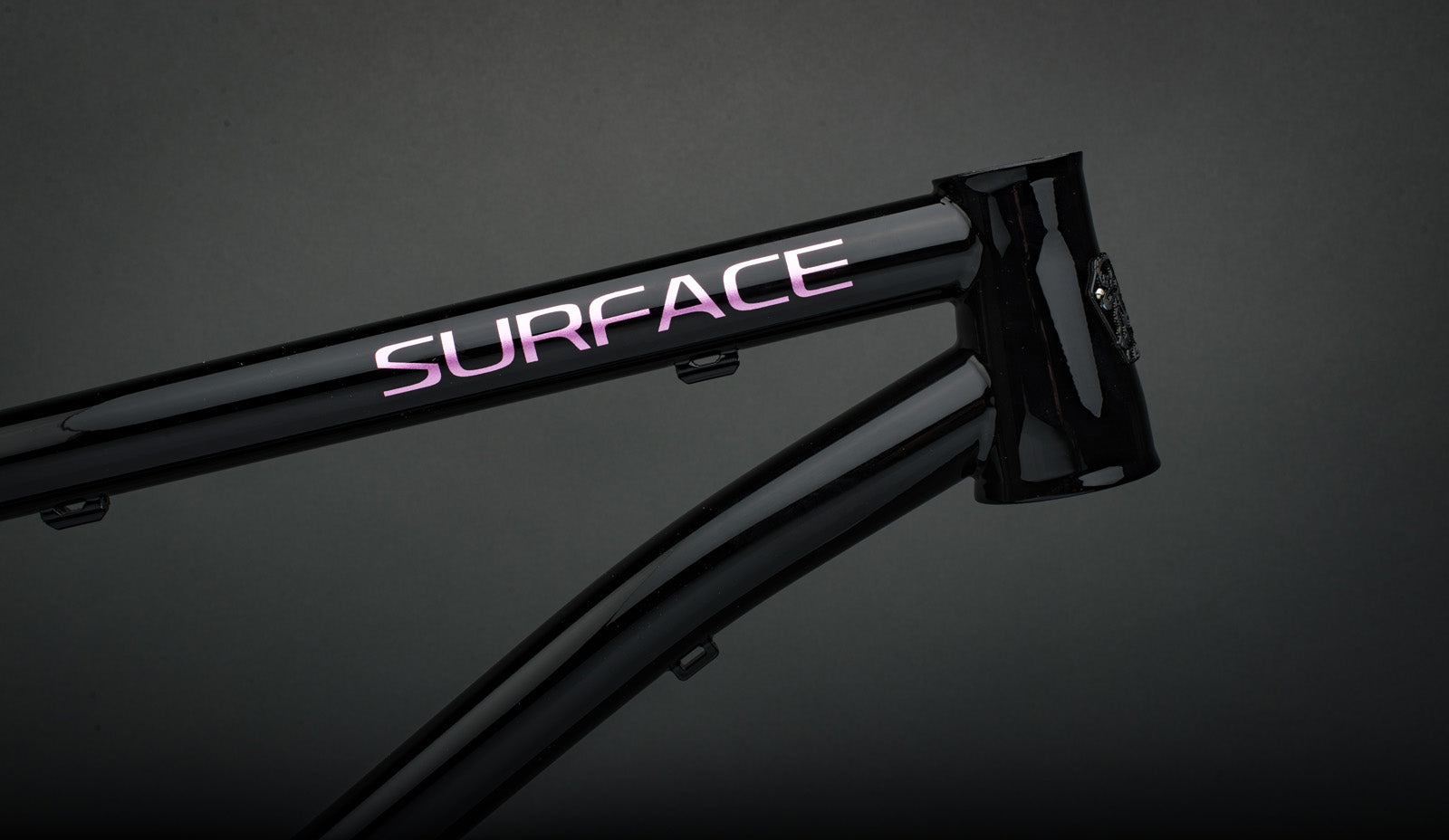

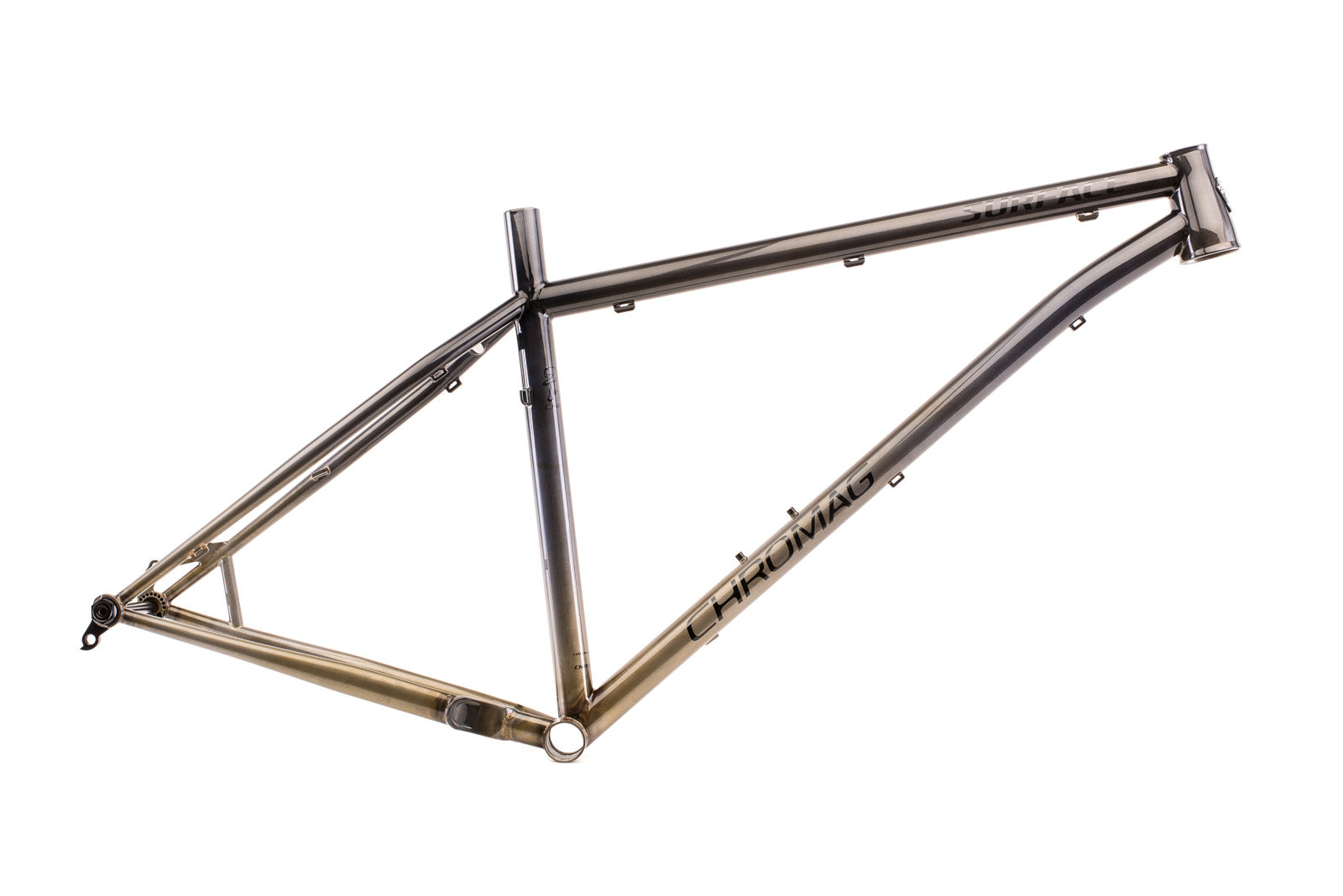

Surface
The Surface has probably the least extreme geometry of the bunch, but don't let that fool you, it was still designed right here in Whistler so it can still take a few punches, and even hand out a few.
The Surface features longer front end, slacker head angle, steeper seattube, shorter chainstays, and bb height adjusted for longer travel (150mm). We are now using 148 boost rear axle spacing and a new ‘yokel’ layout for increased tire clearance. The Surface is a 29er but will also accept 27.5+ tires up to 2.8” or possibly more.
This bike has either been superseded by a new model, or retired from the fleet.
But fear not! We carry a wide variety of spares, and promise to provide support for your trusty steed for a long while yet.
a well oiled machine
If you happen to be the proud owner of a Surface, now might be a good time to remove your seatpost and re-grease it.
If they are left too long, galvanic corrosion can occur between the steel of the frame, and aluminium of the seatpost making it very difficult to remove.
Spare parts
We keep a wide variety of spare parts in stock for years after a frame is deprecated.
Click below to find parts for your Surface.
Surface Geo
| Frame Size | STypical Rider Height: 155cm - 165cm | MTypical Rider Height: 163cm - 174cm | M/LTypical Rider Height: 172cm - 183cm | LTypical Rider Height: 181cm - 192cm | XLTypical Rider Height: 190cm - 200cm |
|---|---|---|---|---|---|
| 647 | 647 | 647 | 647 | 647 | |
| 410 | 434 | 453 | 479 | 498 | |
| 578 | 603 | 622 | 648 | 667 | |
| 105 | 105 | 105 | 105 | 105 | |
| 1158 | 1185 | 1204 | 1229 | 1255 | |
| 51 | 51 | 51 | 51 | 51 | |
| 320 | 320 | 320 | 320 | 320 | |
| 701 | 737 | 774 | 798 | 835 | |
| 425 | 425 | 425 | 425 | 425 | |
| 394 | 432 | 470 | 495 | 533 | |
| 214 | 252 | 290 | 315 | 353 | |
| 65° | |||||
| 75° | |||||
| 29" | |||||
* Max. post insertion based on Rockshox Reverb
